unt 50 injector cleaner

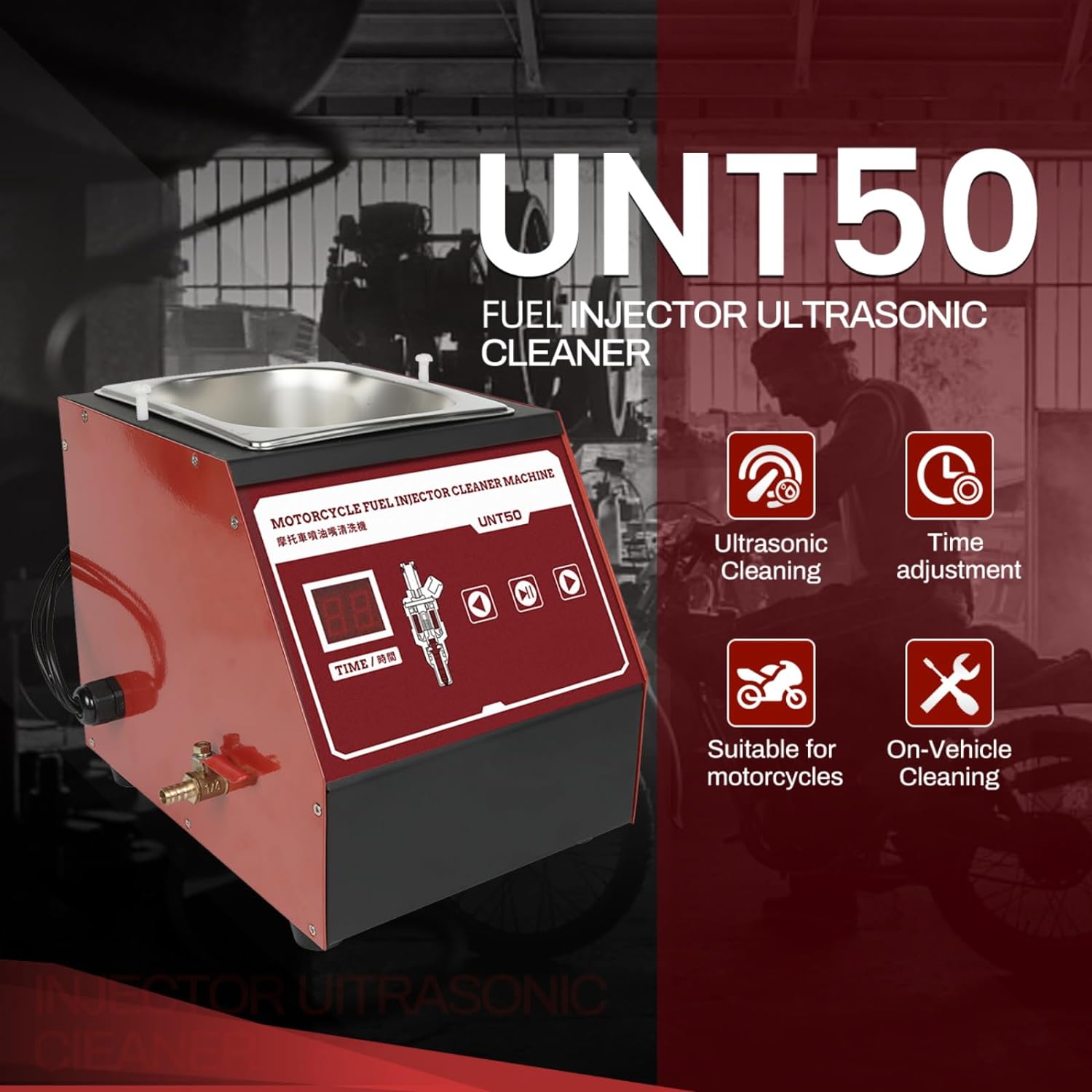

• UNT50 motorcycle injector cleaner machine is an injector cleaning machine designed for motorcycles. Fuel Injector Ultrasonic Cleaner integrates ultrasonic cleaning technology with microcomputer controlled hydraulic closed-loop cleaning detection technology.UNT50 Motocycle Fuel Injector Cleaner simulates various operating conditions in the engine to clean and inspect the injector. Fuel Injector Cleaner is especially convenient and simple to operate.

unt 50 injector cleaner

ULTRASONIC CLEANING

• Fuel Injector Ultrasonic Cleaner works by sending an ultrasonic vibration signal to the injector through the pulse signal line , which strikes the stubborn carbon deposits strongly and removes them more thoroughly.

unt 50 injector cleaner

WIDE RANGE OF APPLICATIONS

• UNT50 Motocycle Fuel Injector Cleaner Machine Supports most of the cars and motorcycles among the market .Compatible For Honda Yamaha Suzuki Kawasaki, etc.

unt 50 injector cleaner

CLEANING TIME CAN BE SET

• The cleaning time can be set (0~20min,the system defaults to 10 minutes).After cleaning, the cleaning fluid is recyclable through the recovery valve, and the whole process is simple and easy.

unt 50 injector cleaner

SPECIFICATION

• Power supply: AC220V/110V
• Ultrasonic cleaning frequency: 28KHZ±0.5KHZ
• Ultrasonic cleaning power: 70W
• Cleaning tank volume: 178×165×100 mm
• Ambient temperature; -10℃~+40℃
• Relative humidity: <85%
• External magnetic field strength: <400A/m
• Machine Size:30cm x 23cm x25cm
• Fuel Tank Capacity: 1300 ml
• Speed Range: 0~7500 rpm
• Injecting Times: 0~9900 seconds, step 10rpm
• PWM Pulse: 0~20.0 ms Step: 0.1 ms
• System Pressure: 0~0.6Mpa (adjustable)
• Time: 0~20 minute (adjustable)
• Note: (open flames are strictly prohibited within 2m around)

unt 50 injector cleaner

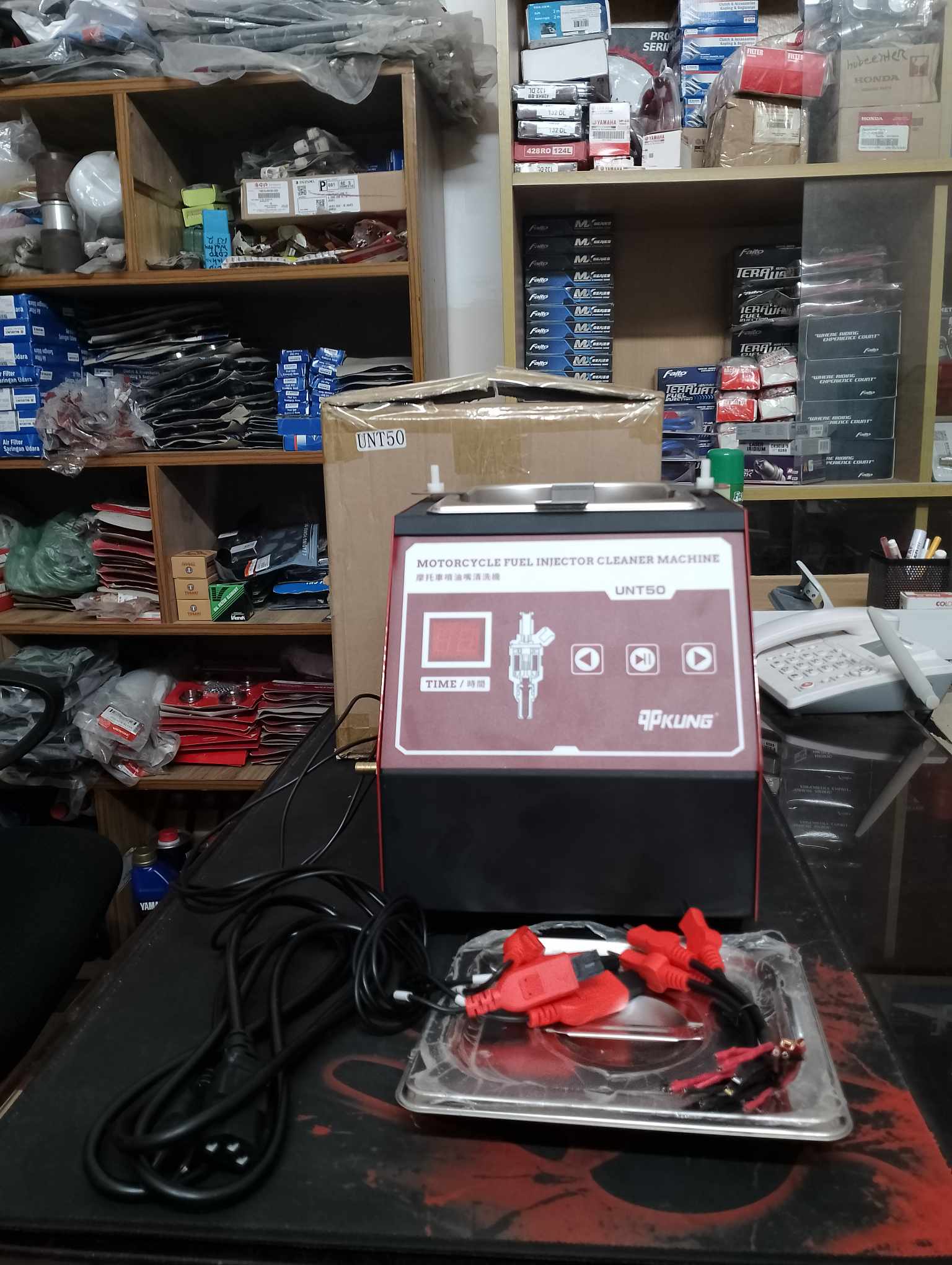

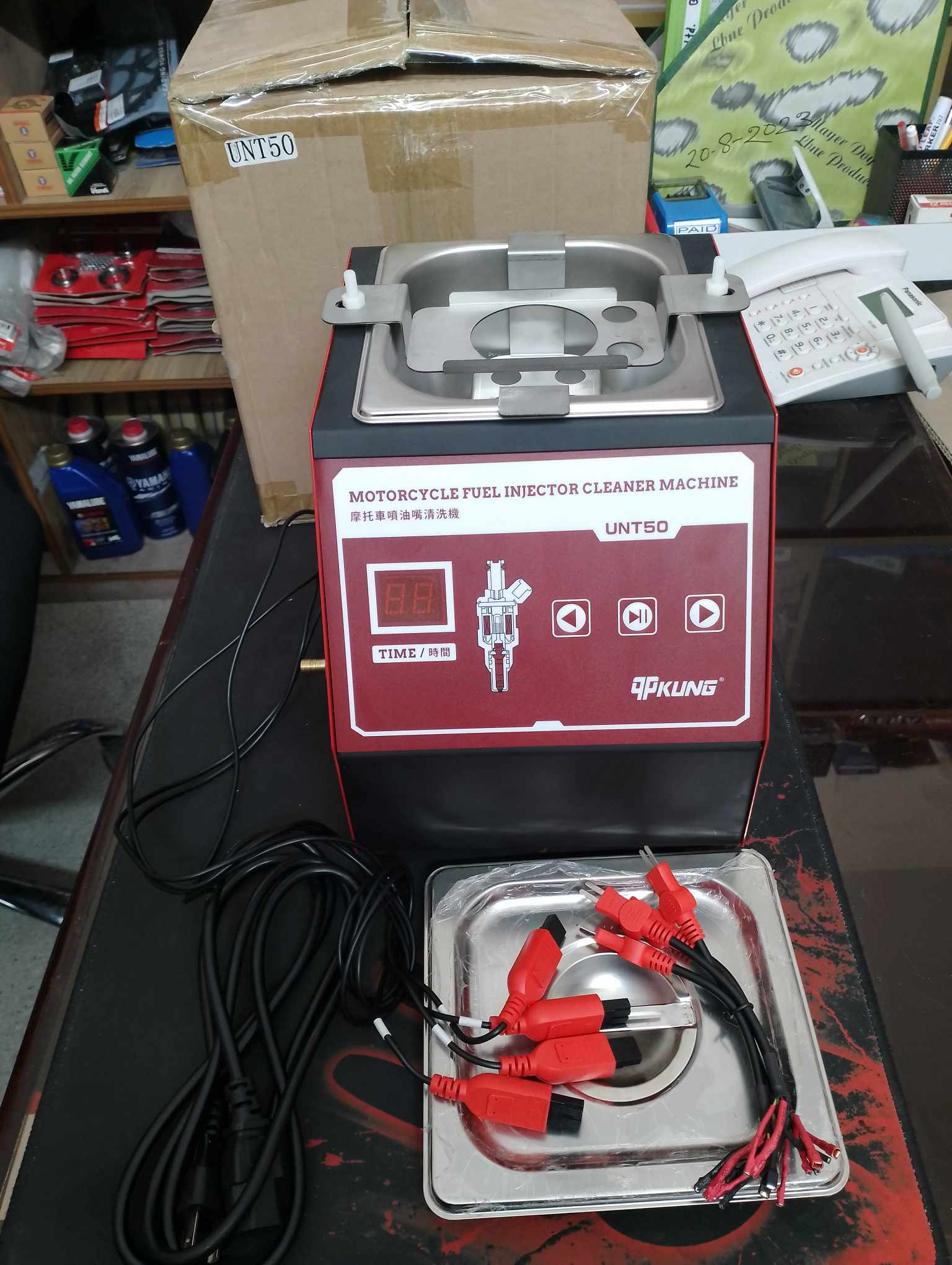

PACKAGE INCLUDE:

• 1pcs * Fuel Injector Cleaner
• 1pcs * Wash Tank Bracket 1
• 1pcs * Wash Tank Bracket 2
• 1pcs * Ultrasonic Cleaning Cover
• 4pcs * Pulse Signal Cable
• 1pcs * Power Cable
• 1pcs *User Manual

unt 50 injector cleaner

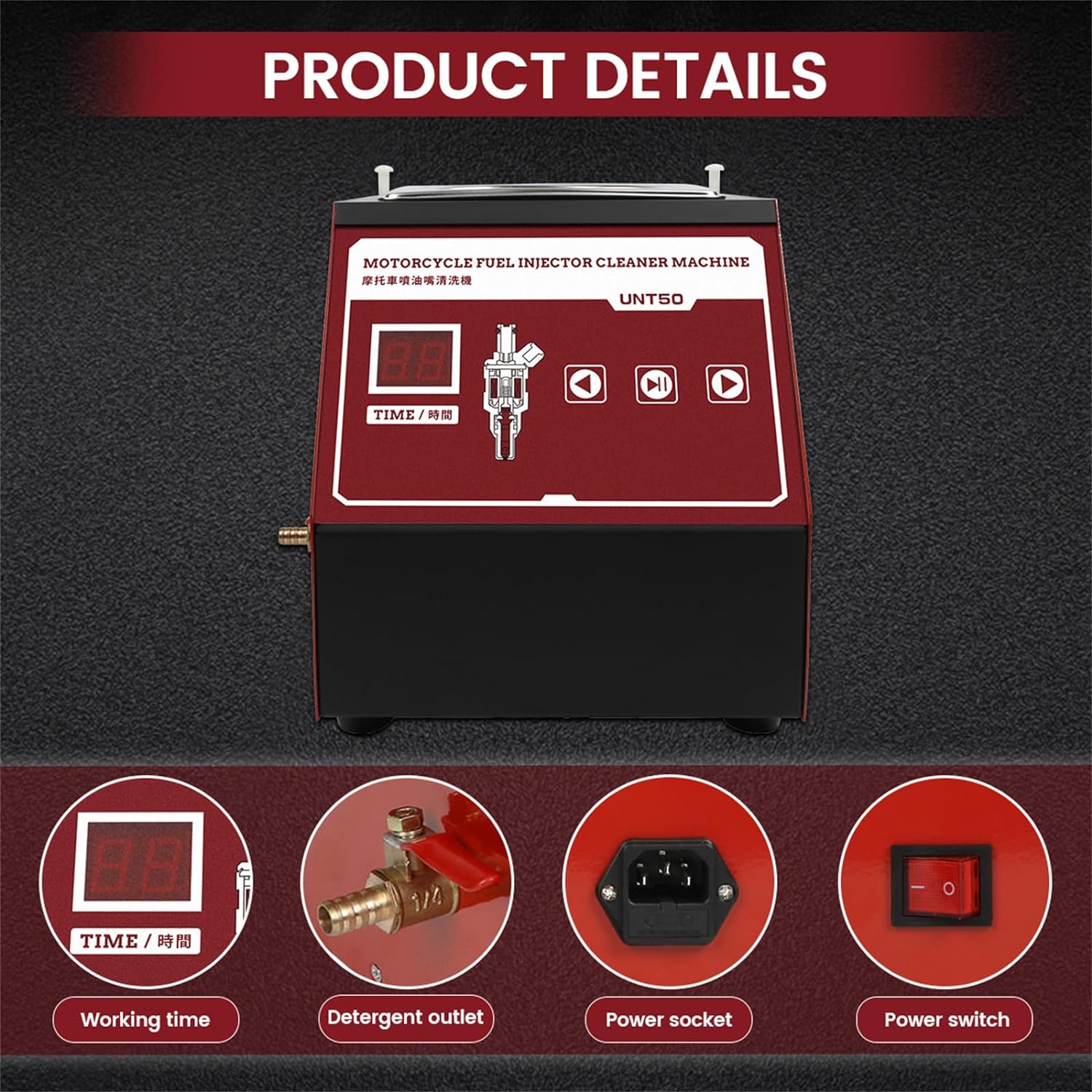

BUTTON DISPLAY

1. Detergent outlet
2. Working time
3. Time setting
4. ON/OFF
5. Time setting
6. Power switch
7. Power socket
8. Cleaning tank
